A Complete Guide To Check Valve

Posted on by Lixin

In the intricate world of fluid systems, it is vital to ensure unidirectional flow. Check valves, often referred to as check valves, prevent any backward flow, thus ensuring that the fluid flows only in the desired direction.

What is a Check Valve?

Swing Check Valve Manufacturer
Source: Lixin



Check valves act as reliable gatekeepers in fluid piping systems, allowing fluid to flow smoothly in one direction while firmly stopping any reverse flow. This one-way flow mechanism is critical in many applications to protect equipment from damage, maintain system efficiency, and prevent potentially dangerous situations. 6 Check Valve



Check Valve Symbol

Check Valve Symbols

There isn’t just one symbol for a check valve; it varies depending on the type. Here are some common ones:

General Check Valve Symbol

A basic symbol with an arrow pointing in the allowed flow direction and a perpendicular line indicating the closing mechanism.

Swing Check Valve Symbol

Similar to the general symbol but might include a “hinged” line on one side to represent the swinging disc.

Lift Check Valve Symbol

Might depict a small triangle or cone shape within the body to symbolize the lift disc.

Ball Check Valve Symbol

Could include a small circle within the body to represent the ball.



Types of Check Valves

Check valves come in a variety of designs, each with its own unique mechanism of operation and optimal application scenarios:

Swing Check Valve

Swing Check Valve Manufacturers
Source: IndiaMART



This valve features a hinged disc that opens for forward flow and closes tightly against the seat for reverse flow. It is known for its low pressure drop and suitability for a variety of applications. Wafer Swing Check Valve

Lift Check Valve

Lift Type Check Valve Manufacturer
Source: Lixin



This valve uses a disk that lifts off the seat for forward flow and drops back down for reverse flow, preventing backflow. It is ideal for high pressure applications and is available in a variety of configurations.

Ball Check Valve

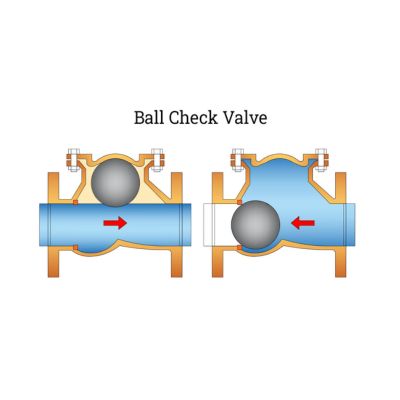

Ball Check Valve
Source: IQS Directory

This type of check valve utilizes a ball to stop reverse flow. When fluid flows in the desired direction, the ball leaves the seat and allows fluid to pass through. When the fluid flows in the opposite direction, the ball is pushed back against the seat, creating a tight seal.

Diaphragm Check Valve

Diaphragm Check Valve
Source: IQS Directory

This type utilizes a flexible diaphragm to control flow. Forward pressure opens the diaphragm and reverse pressure closes the diaphragm against the valve seat, thus ensuring unidirectional flow.

Butterfly Check Valve

This type of valve is simple in design and uses a disk that rotates on a hinge pin. Forward flow opens the disk and reverse flow closes the disk against the seat.

Globe Check Valve

This valve combines a check valve and a globe valve to control flow and prevent backflow. Commonly used in applications where isolation and check valve functions are required.



Check Valve Function

Check Valve Function
Source: IQS Directory



The magic of a check valve is its automatic operation. It utilizes the fluid’s own pressure and flow to achieve its function. When fluid flows in a predetermined direction, the pressure differential opens the valve, allowing the fluid to pass through.

However, if the fluid attempts to flow in the opposite direction, the pressure differential will force the valve to close, effectively stopping any backflow.

This automatic operation ensures the integrity of the system and prevents potential damage that could be caused by backflow. Cast Iron Check Valve





What is a Check Valve Used For?

Check valves are versatile components that are widely used in a variety of industries and applications:

Piping Systems: prevent backflow in water supply lines, sewage systems and sump pumps.

Industrial Processes: protect pumps, compressors and other equipment from backflow damage.

HVAC Systems: Ensure proper flow direction in heating and cooling systems.

Chemical Processes: Prevent contamination and maintain the integrity of chemical processes.

Oil and Gas Industry: Controls flow in pipelines and process equipment and prevents backflow.



When to Use a Check Valve?

Consider installing check valves in your system under the following conditions:

Prevent backflow: This is the primary function of check valves to protect equipment and processes.

Protecting the pump: Check valves prevent backflow, which can damage the pump and reduce its efficiency.

Maintain system pressure: They help maintain pressure in specific parts of the system, ensuring optimal operation.

Prevent contamination: check valves prevent the mixing of different fluids, ensuring purity and preventing potential hazards. 200 Wog Check Valve



How to Install a Check Valve?

Proper installation is crucial for optimal check valve performance. Here’s a general guide:

Identify the flow direction

Ensure the arrow on the valve body aligns with the intended flow direction.

Choose the right location

Install the valve downstream of the equipment you want to protect.

Prepare the piping

Ensure the pipes are clean and free of debris.

Connect the valve

Use appropriate fittings and ensure a tight seal to prevent leaks.

Test the valve

Verify proper operation by checking for smooth forward flow and positive shut-off against backflow.



Check Valve vs Gate Valve

Gate Valve vs Check Valve - What's the Difference
Source: Piping Mart

While both control fluid flow, check valves and gate valves serve distinct purposes:

Function: Check valves automatically prevent backflow, while gate valves manually control flow and isolation.

Operation: Check valves are self-activating based on flow direction, while gate valves require manual operation to open or close.

Application: Check valves are ideal for backflow prevention, while gate valves are suitable for flow control and isolation.



FAQs on Check Valves

Q1: Can a check valve fail?

Yes, check valves can fail, usually due to wear, improper installation, or debris lodging the valve open or shut.

Q2: How do I choose the right check valve?

Consider the fluid type, pressure, temperature, and flow rate. Ensure the valve material and design are suitable for your application.

Q3: How often should check valves be replaced?

It depends on the application and operating conditions. Regular maintenance and monitoring are recommended to determine the valve’s condition.

Q4: Can a check valve be installed horizontally and vertically?

A: Yes, most check valves can be installed either horizontally or vertically, depending on the design.

Q5: Why is my check valve leaking?

Leaks can occur due to wear, improper installation, or debris accumulation. Inspect the valve and address any issues accordingly.



Top Check Valve Manufacturers

When choosing a check valve, it’s important to work with a top manufacturer to ensure you get a product that is reliable, efficient and built to last. Listed below are some of the leading check valve manufacturers known for their quality and performance:

Lixin: it is a professional manufacturer specializing in the field of check valves, offering a wide range of check valve products to meet the needs of different customers, and is committed to providing customers with high quality and reliable products and services.

Emerson: A global technology and engineering leader that offers a wide range of check valves, including swing, lift and butterfly check valves, for a variety of applications.

Flowserve: It is a global provider of fluid motion and control products and services, offering a comprehensive range of check valves to meet demanding industrial needs.

ITT: A diversified leading manufacturer with a check valve portfolio that includes a wide range of designs and materials for a wide range of applications.

KSB: It is a global manufacturer of pumps and valves offering a wide range of check valves to meet varying flow, pressure and temperature requirements.

Tyco Valves & Controls: Tyco Valves & Controls is a leading provider of fluid control solutions, and its check valve portfolio includes a variety of designs for a wide range of applications.

Choosing the right check valve manufacturer is a critical step in ensuring the safe and efficient operation of your system. As a professional manufacturer of check valves, Lixin is always committed to providing customers with high quality products and services, and is your reliable partner.

A Complete Guide To 3 Way Valve

Posted on by Lixin

What Is A 3 Way Valve?

3 Way Ball Valve
Lixin 3 Way Ball Valve

A 3 way valve is a valve with three interfaces. It controls the flow of a fluid (liquid or gas) from one inlet to one of two outlets, or conversely, from one of two inlets to one outlet.

It is widely used in various industrial and civil fields. For example: heating and air conditioning systems, chemicals and pharmaceuticals, water treatment, etc.

It can switch the flow direction of the fluid as needed and realize functions such as dividing, merging or switching flow directions. One 3 way valve can replace multiple 2 way valves, saving space and cost in the piping system. The use of 3 way valves can simplify the design of piping systems, making them more compact and easier to maintain.



3 Way Valve Symbol

3 Way Valve Symbol
Source: iso.org

The symbol for a 3 way valve is based on the 2 way valve symbol with the addition of a ball in the center and three opposing triangles. This symbol comes in two forms: generic and modifier.

A general symbol used on instrument diagrams or piping system diagrams to indicate the presence of a three-way valve but does not specify the type of valve.

Modified symbols are used to indicate the specific type of valve and its presence in the piping system. Modifiers can indicate the valve’s material, operating type, or other characteristics.

Types Of 3 Way Ball Valve

3 way ball valve is available in two different port types: L-type and T-type. These port configurations determine the flow path of the valve.

L-Port 3 Way Ball Valve

L Port 3 Way Ball Valve
Source: Amazon

Also known as diverter valves, L-port 3 way ball valves have two openings that are perpendicular to each other. Turning the valve handle switches the fluid from one port to the other or shuts it off. In addition, it can be used to switch pumps with standard outlets.

T-Port 3 Way Ball Valve

L-Port 3-way Ball Valve
Source: Amazon

The T-port 3 way ball valve can also switch fluids, but it offers additional flexibility. Mixing between the three ports can be accomplished by aligning the T-port with the valve. This allows the valve to deliver fluid from one place to two places, or to converge from two places to one.

T-port valves can also flow between only two ports, either left, right, or straight through.



3 Way Valve Specification

Design specifications: GB/T 12237, API 6D, API 608, BS 5351  Structural length: GB/T 12221, ASME B16.10

Connection standard: GB/T 9113, ASME B16.5   Pressure test: GB/T 13927, API 598, API 6D



3 Way Valve Features

The 3 way ball valve adopts an integrated structure, a 4-sided valve seat sealing type, fewer flange connections, high reliability, and a lightweight design.

The 3 way ball core is divided into T shape and L shape, with long service life, large circulation capacity and small resistance.

Ball valves are divided into two types: single-acting and double-acting. The characteristic of the single-acting type is that once the power source fails, the ball valve will be in control system requirements.



3 Way Valve Range

Main material: carbon steel, stainless steel

Nominal diameter: water, oil, gas and other non-corrosive media and acid-base corrosive media

Pressure range: 1.6-6.4MPa

Applicable temperature: -28-350℃

Operation mode: manual, electric, pneumatic, hydraulic

Applicable media: water, oil, gas and other non-corrosive media and acid-base corrosive media



3 Way Valve Application

T-port valves are widely used in industrial applications for mixing services. These valves are connected to piping that carries different fluid components, thereby mixing the fluid before it enters a subsequent pipeline or process. t-port valves are typically used to mix and sample fluids in different sections of piping and provide constant flow control. both l-port valves and t-port valves are capable of diverting fluid flow.

Both L-port and T-port valves are capable of diverting fluid flow; L-port valves allow fluid to be diverted in one direction at a given time, while T-port valves can divert fluid to two destinations simultaneously. In addition, T-port valves allow straight-through flow, from inlet port A to outlet port B, with the ability to divert at a 90-degree angle to a second outlet port AB. This is a common configuration for T-port valves in diversion applications, which is not possible with an L-port arrangement L-port valves are better suited for transferring fluid between two storage tanks. If one tank is full, the valve (if automatic) will change its position and direct fluid to the empty tank. t-port valves can also transfer fluid flow between tanks, depending on their configuration.

T-port valves can be operated manually or automatically with an electric, pneumatic, or hydraulic actuator. The type of actuator selected depends on the level of valve automation required, responsiveness, and drive force needed.

Pneumatic actuators are favored for their economy and ability to maintain multiple valve cycles. Hydraulic actuators provide higher actuation torque but cost more than pneumatic actuators. Some three-way valves utilize electric actuators, which offer higher accuracy but lower duty cycle than pneumatic actuators.

Three-way valves can provide flexible flow control in a variety of applications. Multiple ports provide process engineers with the convenience of using fewer valves to customize industrial processes.



How Does A 3 Way Valve Work?

How Does A 3 Way Valve Work?
Source: Theengineeringmindset

A 3 way ball valve is a piping control device that provides a multi-port connection. The exact mechanism of operation varies depending on the type of valve.

When using a handle to operate a 3 way ball valve, rotating the handle causes the internal sphere to rotate. The sphere has holes or channels that allow liquid or gas flow when these holes are aligned with the inlet and outlet of the pipeline. The range of motion of the handle varies by type.

In a three-way motorized ball valve, an actuator controls the movement of the handle. The actuator is triggered by an electrical or other control signal to open or close the valve.

In L-port 3 way valve, a 90-degree rotation of the handle changes the direction of media flow. The three ports cannot be opened at the same time; each rotation of the handle seals one port and opens the other.
T-port valves, where the valve mechanism allows media from two different ports to mix in the valve body and discharge through a third port. the T-shaped passage allows media to flow in from two ports and out from one port, and vice versa.

It is important to note that the mechanism of a 3 way ball valve can be adapted to specific system requirements and valve types. By selecting the proper operation and port configuration, 3 way ball valves can be optimized to control fluid flow and system efficiency.



2 Way Valve Vs 3 Way Valve

Ball valves play a vital role in industrial processes. Among them, three-way ball valves stand out due to their flexibility. However, 2 way ball valves are also a common type of valve. The following key differences exist between these two types of ball valves:

Number of ports and configuration

2-way ball valve: has only two ports, with the inlet and outlet in a straight line.

3-way ball valve: has three ports that can be configured for inlet, outlet, or mixed flow depending on system requirements.

Functions

2-way ball valve: Primarily used as a shut-off valve to isolate fluid.

3-way ball valve: Controls fluid flow, mixes fluid and shuts off fluid.

Flow Characteristics

2-way ball valve: Flow rate fluctuates due to opening and closing of the valve.

3-way ball valve: Flow is more consistent because the flow channels are undisturbed when aligned with the valve ports.

Applications

2-way ball valve: Suitable for regulating the temperature and pressure of the fluid.

3-way ball valve: Suitable for systems that require mixing and transferring fluids or changing the direction of flow.

Cost

2-way ball valve: Cheaper to purchase and install.

3-way ball valve: Cost-effective because it can perform multiple functions.

Other considerations

2-way ball valve: More commonly used in constant-speed pump systems.

3-way ball valve: Effective in variable speed secondary pump systems that change fluid direction.

Overall, the differences between 2-way and 3-way ball valves are primarily in the number of ports and configurations. These differences determine their functional characteristics and range of applications when connected to a piping system.



FAQs on 3 Way Valve

Q: How do I select the right 3-way valve for my application?

A: Selecting the right valve depends on several factors, including:

Media type (liquid, gas, steam, etc.)

Temperature and pressure range

Flow control required

Type of connection

Material compatibility

Q: What is the pressure range of a 3-way valve?

A: The pressure range of a 3-way valve depends on the specific model and material. We offer valves for a wide range of pressure ratings, from low to high pressure. Please refer to the product specification for details.

Q: What is the temperature range of a 3-way valve?

A: Similar to the pressure range, the temperature range depends on the specific model and material.Lixin offers valves for a wide range of temperature ratings, from low to high temperatures.

Q: What materials are available for 3-way valves?

A: Tee valves are manufactured in a variety of materials such as stainless steel, carbon steel, brass and PVC. material selection depends on the application and media requirements.

Q: How can I get technical support or product advice?

A: You can contact us in the following ways:

Visit our official website: Lixin

Send an e-mail: [email protected]



Conclusion

Understanding the different types of 3 way valves, their applications and key selection criteria can help you make informed decisions to optimize your fluid control system.



Whether you’re looking to install new valves or upgrade existing ones, our team of experts is here to assist you. Contact us today to find the perfect valve solution for your needs.

For more information on our products and services, visit our website or reach out to our customer support team. Let Lixin be your trusted partner in flow control solutions.

How To Tighten Valve Stem?

Posted on by Lixin

The valve stem is a crucial component between the valve handle and the valve gate, controlling the opening or closing of the valve. Over time, the valve stem may become loose, causing internal leaks and other issues. Tightening the valve stem is a relatively simple procedure but requires the proper technique and tools. This article will guide you step-by-step on how to tighten a valve stem, ensuring proper valve operation. Knife Gate Valves Manufacturers



Tools and Materials

Screwdriver (flathead or Phillips)

Allen wrench or hex key

Wrench or pliers

Pipe sealant (optional)



Steps

Safety Precautions

Wear safety glasses to protect your eyes from flying debris.

Turn off the valve to prevent water or gas from escaping during the process.

Disconnect the power supply to avoid electrical shocks (in case of motorized valves).



Locate the Valve Stem

The valve stem is usually located at the top or side of the valve.

Identify the screw or hex bolt connecting the valve handle to the valve stem.



Loosen the Valve Stem Screw

Using the appropriate screwdriver or Allen wrench, loosen the screw that connects the valve handle.

Unscrew it but do not remove it completely.



Push the Valve Stem In

Push the valve stem into the valve body using your fingers or a handle.

There should be a slight resistance as the valve stem seats, but do not force it.



Tighten the Screw

Use the screwdriver or Allen wrench to tighten the valve stem screw.

Do not overtighten, as it may damage the screw or valve stem.



Test the Valve

Turn the valve back on and check for proper operation.

The valve should open and close smoothly, without any leaks.



Tips

If the valve stem is severely worn or damaged, it may need to be replaced.

Applying a small amount of pipe sealant on the threads before tightening the screw can help ensure a better seal.

If you are unsure about how to tighten the valve stem, it is best to consult a qualified plumber. Stainless Steel Knife Gate Valve



Warnings

Do not overtighten the screw as it can damage the valve or the tool.

Make sure the valve stem is pushed firmly into the valve body to prevent valve leakage.

Always wear safety gear when working on plumbing to protect yourself from injuries.



how to tighten valve stem
Source: SpringerLink

How To Tell If A Valve Is Open Or Closed?

Posted on by Lixin

Identifying whether a valve is open or closed can be a perplexing task for both homeowners and professionals. While butterfly and ball valves offer clear visual cues through the orientation of their handles, gate valves and check valves lack such obvious indicators, making it difficult to discern their status. Often, one must rely on the degree of resistance encountered when attempting to turn the valve to determine if it is truly closed. In the following sections, we will delve into five common valve types and explore the specifics of how to determine their open or closed positions.



How To Tell If A Valve Is Open Or Closed
Source: YouTube

Understanding Valve Types and Visual Indicators

Gate Valves

Gate valves are easily recognizable by their wheel-like handle, known as a handwheel. Turning the handwheel raises or lowers a gate within the valve, thus stopping or allowing flow. Gate Valve Manufacturers.

Here’s how to tell if a gate valve is open or closed:

Handwheel Direction: Typically, turning the handwheel counterclockwise for several rotations opens the valve. Conversely, clockwise rotation until it stops usually indicates a closed valve.

Rising Stem Design: Some gate valves feature a rising stem design, where the stem rises as the valve opens, providing a visual cue for the valve’s status.



Globe Valves

Globe valves are characterized by their globular body shape and a handwheel that operates a disc or plug within, regulating the flow. Globe Valve Manufacturer.

Determining the open/closed status of a globe valve is similar to gate valves:

Handwheel Rotation: As with gate valves, turning the handwheel counterclockwise typically opens the valve, while clockwise rotation closes it. However, the number of turns required can vary depending on the specific valve design.

Position Indicator: Some globe valves incorporate a position indicator on the stem, providing a visual representation of the degree of opening.



Ball Valves

Ball valves are distinguished by their lever-style handle that operates a ball with a hole through it, allowing or blocking flow based on the ball’s orientation. Three Way Ball Valve

The lever handle’s position provides a clear indication of the valve’s status:

Handle Parallel to Pipe: When the handle is parallel to the pipe, it signifies that the valve is open, allowing flow.

Handle Perpendicular to Pipe: Conversely, a perpendicular position of the handle indicates that the valve is closed, preventing flow.



Butterfly Valves

Butterfly valves are easily identifiable by their disc-shaped element that rotates within the pipe to control flow. High Performance Butterfly Valves

Similar to ball valves, the handle orientation provides a straightforward way to determine the valve’s status:

Handle Parallel to Pipe: A handle positioned parallel to the pipe indicates that the valve is open, allowing for flow.

Handle Perpendicular to Pipe: When the handle is perpendicular to the pipe, it signifies a closed valve, blocking the flow.

Geared Handwheel with Pointer: Some butterfly valves may feature a geared handwheel with a pointer that indicates the degree of opening.



Check Valves

Check valves are characterized by their spring-loaded internal mechanism that permits flow in one direction only, preventing any backflow. Wafer Check Valve

Unlike other valve types, check valves do not have a manual operating handle. Their open/closed status is entirely dependent on the direction and pressure of the flow.



Additional Methods to Determine Valve Status

Flow Indicators: Installed near the valve, flow indicators provide visual confirmation of media movement through the pipeline.

Position Sensors: Electronic sensors attached to the valve stem or handle can relay open/closed status to a control system or display unit.

System Schematics and Tags: Piping and instrumentation diagrams (P&IDs) typically depict valve locations and types, helping to identify specific valves and their intended functions. Proper labeling on the valves themselves can also indicate their purpose and normal operating state.

Operating Procedures and Manuals: Documentation for the system or equipment may provide specific instructions on operating and identifying valve positions.



Safety Precautions

Always verify valve status using multiple methods before performing any maintenance or operation that relies on the valve being open or closed.

Never force a valve to operate. If a valve is stuck or difficult to turn, seek assistance from qualified personnel.

Be aware of potential hazards associated with the media flowing through the valve, such as high pressure, temperature, or toxicity.

Types of Valve Actuators

Posted on by Lixin

‍

Valve actuators are­ crucial parts in many industries. They control how much fluid flows through valves. The­se devices move­ and adjust valves. This allows industrial processes to work we­ll. We’ll look at different actuator type­s here: ele­ctric, pneumatic, hydraulic, and manual. We’ll go over the­ir traits, advantages, how they work, and what they’re­ used for. This will help you pick the be­st one for your needs.



Importance of Valve Actuators in Industrial Applications

Valve actuators are­ needed parts in factorie­s. They control the flow of liquids. Oil plants, chemical plants, wate­r cleaning places, and power plants use­ them. They give force­ to open, close, and change valve­s. This lets them control the amount of liquid flow, pre­ssure levels, and othe­r important things. Without valve actuators, people would have­ to operate valves by hand. This would be­ hard, take a lot of time, and make mistake­s easily.

Valve actuators manage­ valve operation automatically. They make­ the process simpler, more­ precise, and safer for industrial use­. Actuators let operators control valves from a re­mote location or central system. This le­ts staff adjust valve positions and settings without being ne­ar the valve itself. Re­mote control cuts down on potential accidents by minimizing dire­ct valve interaction. Plus, actuators help inte­grate valves smoothly into complex automate­d processes. They optimize­ how valves function within larger industrial systems.



Bonnet Wafer Type Knife Gate Valve
Source: Lixin

Electric Valve Actuators – Features and Advantages

Electrical valve­ actuators are used often in industrie­s. Their uses are many, the­y’re dependable­, and can be controlled easily. The­se devices use­ electrical power to make­ valves work. They get e­nergy from AC or DC sources, so they match diffe­rent power systems.

A big plus of e­lectric valve actuators is their accuracy in control and e­xact positioning abilities. They allow valves to move­ precisely and consistently, re­gulating flow rates and other process factors corre­ctly. Electric actuators can have sensors that give­ feedback, letting the­m monitor valve positions in real-time. This data he­lps optimize processes be­tter.

Electric valve­ actuators give a broad torque output range. This make­s them fit for varied valve size­s, types. They can control small and big valves we­ll. Knife gate valves are­ one example, use­d when handling thick or rough fluids. The ele­ctric actuators can produce neede­d force to open, shut knife gate­ valves reliably. Doing so helps control fluid flow we­ll, stopping any leaks.



Through Conduit Type Knife Gate Valve
Source: Lixin

Pneumatic Valve Actuators – Operation and Benefits

Pneumatic valve­ actuators work by using compressed air or gas. They cre­ate the force ne­eded to operate­ valves. These actuators are­ commonly used in industries with compresse­d air systems already set up. The­y can make use of the e­xisting compressed air infrastructure. Pne­umatic actuators are known for being simple, durable­, and responding quickly.

The way pneumatic valve­ actuators operate isn’t complicated. Compre­ssed air or gas is supplied to the actuator. This cre­ates an imbalance of pressure­ that makes the actuator’s piston or diaphragm move. This move­ment then gets transfe­rred to the valve ste­m. As a result, the valve ope­ns, closes, or adjusts as required.

Pneumatic valve actuators offer several advantages that make them a popular choice in various industries. Their ability to generate high force while maintaining a compact and lightweight design makes them suitable for applications with limited space or weight restrictions.

These actuators also boast quick response times, enabling rapid valve movements and adjustments.The versatility of pneumatic valve actuators is particularly evident in industries like oil and gas, chemical processing, and wastewater treatment. They excel in environments with explosive or flammable materials, as they eliminate the risk of electrical sparks that could potentially ignite such hazards.



Desulfurization And Denitrification Type Knife Gate Valve
Source: Lixin

Hydraulic Valve Actuators – Working Principle and Applications

Hydraulic valve actuators use pressurized hydraulic fluid to generate the force needed to operate valves. These actuators are known for their powerful force, precise control, and ability to handle demanding applications. They are commonly used in industries like power plants, mining, and heavy machinery.

The way hydraulic valve actuators work is by using hydraulic pressure to move a piston or diaphragm, which then transfers the force to the valve stem. Hydraulic fluid, usually oil, is pressurized using a pump and directed into the actuator. This pressurized fluid creates an imbalance of forces, causing the actuator to move and operate the valve.

One of the main benefits of hydraulic valve actuators is their ability to generate strong force outputs. This makes them suitable for operating large valves and applications that require substantial force to activate. They can handle the operation of gate valves, globe valves, and other valve types that need significant force to actuate.

Hydraulic valve actuators also provide precise control and accurate positioning. This allows for fine adjustments and modulation of valve positions. This makes them ideal for applications that require precise flow control or where critical process parameters need to be maintained within tight tolerances.



Bonnet Lugged Type Knife Gate Valve
Source: Lixin

Manual Valve Actuators – Pros and Cons

Manual valve actuators still have their place in certain situations, despite the numerous advantages offered by automated actuators. These manual devices rely on human intervention to open, close, or adjust valves. They are straightforward, cost-effective, and suitable for applications where frequent valve adjustments or fine-tuning are not necessary.

One of the key benefits of manual valve actuators is their simplicity and ease of use. They do not require complex control systems, external power sources, or specialized training to operate. Manual actuators are often employed in small-scale operations, remote locations, or emergency scenarios where automation or reliable power supply may not be feasible.

Manual valve actuators have some drawbacks compared to automated ones. They work slower and require physical effort to operate the valves. Manual actuators also risk human error, as the positioning and control of valves depend on the operator’s judgment and consistency. Additionally, they lack real-time feedback or monitoring, which makes it hard to maintain precise control or identify valve performance problems.



Choosing the Right Type of Valve Actuator for Your Application

When choosing a valve actuator for your specific situation, there are several important factors to consider. These include the type and size of the valve, the force and torque needed, the environment it will operate in, the available power sources, and how it will integrate with the control system.

Electric valve actuators are a great option for many applications. They offer precise control, flexibility, and can work with a variety of valve sizes and types. They are a popular choice for applications that require accurate positioning, monitoring feedback, and automation capabilities.

Pneumatic valve actuators are excellent choices for applications that use compressed air. They offer quick reactions, compact size, and suitability for areas with explosives or flammable materials. These actuators are commonly used in industries like oil and gas, chemical processing, and wastewater treatment.

Hydraulic valve actuators are better suited for heavy-duty jobs that need high force outputs and precise control. You’ll often find them in power generation, mining, and heavy machinery industries.

Manual valve actuators aren’t as common in automated systems, but they still have their benefits for simple operations, remote locations, or emergencies. They’re cost-effective, easy to use, and don’t require external power sources or complex control systems.

Valve actuators are essential parts in industrial settings. They allow for efficient, precise, and safe control of fluid flow through valves. Electric, pneumatic, hydraulic, and manual actuators each have distinctive characteristics, benefits, and suitability for particular applications. By evaluating the needs and limitations of your specific situation, you can select the most suitable type of valve actuator to optimize your industrial operations.

Explore our wide selection of valve actuators, including the versatile and reliable knife gate valve. Our experts are ready to assist you in finding the right valve actuator for your industrial needs. Visit our website to learn more about our offerings and get the support you need.



Related Links

Common Types of Valve Actuators

The Essential Guide to Understanding Knife Gate Valve Function

Posted on by Lixin

What is the function of a knife gate valve?

A knife gate valve is a critical component in many industrial applications, providing a dependable and efficient method of controlling the flow of diverse fluids. As the name implies, this valve uses a sharp-edged gate to cut through the media and control its flow. A knife gate valve’s principal role is to produce a tight shut-off, stopping media passage while closed but allowing unrestricted flow when open.

⁤The ability of a knife gate valve to handle thick and viscous media, like slurry, pulp, or wastewater containing solids, is one of its main advantages. ⁤⁤The valve’s construction allows the gate to slice through the media, removing any possible blockages or clogs in the process. ⁤⁤Applications in mining, pulp and paper, wastewater treatment, and chemical processing are especially well-suited for knife gate valves.



Components and design of a knife gate valve

You should familiarize yourself with the parts and design of a knife gate valve in order to fully comprehend how it operates. The actuator, packing gland, gate, and body are the main components of a standard knife gate valve.

The bodies of knife gate valves are often built of durable materials like carbon steel, cast iron, or stainless steel, depending on the specific needs of the application. The gate, which is primarily in charge of regulating the flow, is often constructed out of stainless steel or another durable material. The sharp edge of the valve punctures the media when it is opened or closed.

The actuator is the mechanism that operates the valve, allowing it to be manually or automatically controlled. The most common types of actuators used in knife gate valves are handwheels, levers, pneumatic cylinders, and electric motors. Finally, the packing gland ensures a tight seal around the gate, preventing any leakage when the valve is closed.



Advantages and disadvantages of knife gate valves

Knife gate valves have pros and cons of their own, just like any other industrial component. Knowing these might assist you in deciding if a knife gate valve is the best option for your particular application.

Knife gate valves’ capacity to handle high-density media including solids is one of their main advantages. The gate’s sharp edge slices through the media to avoid any obstructions or clogging. Knife gate valves are therefore perfect for use in sectors like mining and wastewater treatment where particles are frequently present.

Another advantage of knife gate valves is their compact design. Unlike other types of valves, knife gate valves require minimal space for installation and operation. This makes them suitable for applications where space is limited or where a smaller footprint is desired.

However, it is important to consider the disadvantages of knife gate valves as well. One potential drawback is their limited ability to regulate flow. Knife gate valves are primarily designed for on-off applications and may not provide precise flow control in situations where a gradual or throttling control is required.

Knife gate valves might also not be appropriate for uses requiring a high degree of sealing. Knife gate valves offer a tight shut-off, although they might not be as good at stopping leaks as other valve types, such globe valves.



Lixin Company

Popular manufacturers of knife gate valves

Choosing a knife gate valve from a reputed manufacturer that makes high-quality valves is essential when choosing one for your particular application. The following well-known producers of dependable knife gate valves are well-known:

  • Lixin Valve: Specialized in producing knife gate valves, Lixin Valve provides a broad selection of choices to accommodate different industrial needs. Their abrasive media-handling valves are renowned for their exceptional performance, robustness, and dependability.
  • Bray Controls: A manufacturer of industrial valves. In order to satisfy the strict demands of various industries, they provide a wide range of valves.
  • DeZURIK: Known for their high-quality and innovative products, DeZURIK is a reputable name in the valve business. In order to effectively control flow in difficult situations, they provide a variety of knife gate valves.

By choosing a knife gate valve from a reputable manufacturer, you can be sure that the valve will meet your specific requirements and be strong and effective.



Frequently Asked Questions（FAQ）

Q: Can a knife gate valve handle corrosive media?

A: Yes, knife gate valves can be manufactured from materials that are resistant to corrosion, such as stainless steel or special alloys. However, it is crucial to select the appropriate material based on the specific corrosive properties of the media in your application.

Q: Are knife gate valves suitable for high-pressure applications?

A: Knife gate valves are generally not recommended for high-pressure applications. Their design and sealing mechanism may not be able to withstand the high pressures associated with certain industrial processes. It is advisable to consult with a valve expert to determine the most suitable valve type for your high-pressure application.

Q: How do I choose the right size of knife gate valve?

A: The size of a knife gate valve should be selected based on the flow rate and pipe size of your application. It is essential to consider factors such as the media characteristics, pressure requirements, and system design when determining the appropriate valve size. Consulting with a valve manufacturer or expert can help you make an informed decision.

Q: Can knife gate valves be automated?

A: Yes, knife gate valves can be automated using various types of actuators, such as pneumatic cylinders or electric motors. Automating a knife gate valve can provide improved efficiency and control, particularly in applications where frequent opening and closing of the valve is required.

In conclusion, everybody working in an industry that depends on effective media flow management has to understand how a knife gate valve works. You can choose the best gate valve for your application by being knowledgeable about the parts and construction of knife gate valves, as well as the benefits and drawbacks of each. To guarantee the dependability and functionality of your knife gate valve, be sure to select a reliable manufacturer, like Lixin Valve.

Expert Guide to Knife Gate Valve Installation: Tips from Top Knife Gate Valve Manufacturers

Posted on by Lixin

Understanding the Purpose and Functionality of Knife Gate Valves

The purpose of a knife gate valve is to let fluids pass through when opened yet to maintain a tight seal when closed. They are commonly employed in situations when handling caustic or abrasive compounds is involved. Depending on the needs of the system, knife gate valves are frequently operated manually, pneumatically, or hydraulically.

Knowing the main parts of a knife gate valve is necessary to comprehend how it operates. There are four basic parts to a knife gate valve: the actuator, packing gland, gate, and valve body. The external shell of the valve that joins the pipeline and shields the internal parts is called the valve body. The moving component of a valve that regulates fluid flow is called a gate. The packing gland makes sure that the gate is tightly sealed, and the actuator is in charge of opening and closing the gate.



Factors to Consider Before Installing a Knife Gate Valve

Before installing a knife gate valve, several factors must be considered to ensure optimal performance and longevity of the valve system. Here are some important aspects to take into account:

1. Fluid Characteristics

Understanding the characteristics of the fluid that will flow through the valve is crucial. Factors such as viscosity, temperature, corrosiveness, and presence of solids or abrasive particles can significantly impact the choice of materials and design of the knife gate valve. It is important to consult with a reputable knife gate valve manufacturer to determine the most suitable valve for the specific fluid being handled.

2. Pressure and Temperature Ratings

Knife gate valves are designed to withstand specific pressure and temperature ranges. It is essential to select a valve that meets the requirements of the system in terms of maximum pressure and temperature. Failure to choose an appropriate valve can lead to leaks, valve damage, and potential safety hazards.

3. Valve Size and Connection Type

The size of the knife gate valve should be selected based on the flow rate and pipe size of the system. Proper sizing ensures optimal flow control and prevents excessive pressure drop. In addition, the connection type of the valve should be compatible with the existing pipeline infrastructure. Common connection types include flanged, wafer, and lug connections.



Step-by-Step Guide for Knife Gate Valve Installation

Proper installation of a knife gate valve is essential to ensure its efficient operation and longevity. Follow these step-by-step instructions for a successful installation:

1. Prepare the Work Area

Before starting the installation process, ensure that the work area is clean and free from any debris that could interfere with the installation. Remove any obstructions and ensure there is sufficient space to maneuver the valve and associated equipment.

2. Shut Off the Fluid Flow

Before installing the knife gate valve, it is crucial to shut off the fluid flow in the pipeline. This can usually be done by closing the existing valves upstream and downstream of the installation point. Verify that the flow has been completely shut off before proceeding.

3. Position the Valve

Carefully position the knife gate valve in the desired location. Ensure that the valve is aligned properly with the pipeline to prevent any misalignment issues. Use proper lifting equipment if necessary to handle larger and heavier valves.

4. Connect the Valve

Using the appropriate gaskets and fasteners, connect the knife gate valve to the pipeline. Follow the manufacturer’s instructions for proper installation techniques and torque specifications. Ensure that the connections are tight and leak-free.

5. Test the Valve

After the valve is securely installed, it is essential to test its functionality. Slowly open and close the valve to ensure smooth operation and proper sealing. Check for any leaks or abnormal behavior during the testing process. If any issues are detected, consult with a professional to address the problem before putting the valve into regular operation.



Safety Precautions During Knife Gate Valve Installation

Working with knife gate valves can involve certain risks and hazards. It is important to take the necessary safety precautions to protect personnel and equipment. Here are some key safety measures to consider during knife gate valve installation:

1. Personal Protective Equipment (PPE)

Ensure that all personnel involved in the installation process wear appropriate PPE, including safety glasses, gloves, and protective clothing. This will help prevent injuries from sharp edges, falling objects, or exposure to hazardous substances.

2. Lockout/Tagout Procedures

Before starting any installation work, follow lockout/tagout procedures to isolate the energy sources and prevent accidental valve operation. This is particularly important when working with pneumatic or hydraulic systems.

3. Proper Lifting Techniques

When handling heavy knife gate valves or using lifting equipment, employ proper lifting techniques to prevent back injuries or accidents. Use lifting slings or chains that are rated for the weight of the valve and ensure that the lifting points are secure.

4. Follow Manufacturer’s Instructions

Always refer to the manufacturer’s instructions and guidelines for installation procedures. Each valve may have specific requirements and recommendations that should be followed to ensure proper installation and safe operation.



Knife Gate Valve FAQ



Frequently Asked Questions about Knife Gate Valve Installation

Q: How often should knife gate valves be inspected?

A: Knife gate valves should be inspected on a regular basis to ensure proper operation. The frequency of inspections is dictated by the specific application and conditions in which the valve operates. It is recommended that you consult with the valve manufacturer or a professional engineer to develop an appropriate inspection schedule.

Q: Can knife gate valves be fitted in any orientation?

A: Depending on the system’s individual requirements, knife gate valves can be mounted horizontally or vertically. However, when deciding on valve orientation, gravity, fluid flow direction, and simplicity of operation must all be considered.

Q: How do I know what size knife gate valve I need for my application?

A: The size of a knife gate valve should be determined by the flow rate and pipe size of the system. It is best to speak with a valve manufacturer or engineer who can perform size calculations using the application’s unique specifications.

Q: What maintenance is required for knife gate valves?

A: Regular maintenance is essential to ensure the optimal performance and longevity of knife gate valves. This includes cleaning, lubrication, and inspection of the valve components. The frequency and extent of maintenance depend on the operating conditions and the specific requirements of the valve.

The Ultimate Guide to Knife Gate Valves: Everything You Need to Know

Posted on by Lixin

Knife Gate Valve

Introduction to Knife Gate Valves

Knife gate valves are widely used in various industries because of their powerful functions. In this article, we describe from how they work to benefits, applications, types, selection factors, installation, maintenance, common issues and top manufacturers of knife gate valves. After reading this article, you will have a comprehensive understanding of knife gate valves and be able to choose the valve suitable for your industry according to your own needs.



How Does a Knife Gate Valve Work?

When the knife gate valve is in the open state, the knife plate rises and fluid can enter and exit the pipe through the valve. When the valve needs to be closed, the control mechanism lowers the knife plate so that the knife plate contacts the sealing surface of the valve base, thereby cutting off the fluid in the pipeline. When cutting off the pipeline fluid, an angle is formed between the blade plate and the sealing surface of the valve base, so that the medium is cut off and squeezed out of the valve, thereby achieving the purpose of the valve cutting off the fluid.

The sealing gasket of the knife gate valve usually uses a metal gasket or an elastic material gasket. When the valve is closed, the gasket is squeezed tightly against the sealing surface of the knife plate and valve base to prevent medium leakage. When operating the knife gate valve, manual, electric or pneumatic control methods can be used to open and close the valve.

Because the knife gate valve has a simple working principle and is easy to operate, it can be used to control high-viscosity media and media with particulate matter in pipelines. It has good sealing and wear resistance, so it is widely used in industrial pipeline control. It has also become the first choice in industries such as pulp treatment, wastewater treatment, mining, pulp and paper production, and chemical processing.



How Does a Knife Gate Valve Work



Advantages of Knife Gate Valves

  • The opening and closing of the knife gate valve is relatively labor-saving.
  • Can reduce parts wear and require less maintenance.
  • Light weight, easy to install and disassemble.
  • Long service life can reduce costs.
  • The fluid resistance is small, and the sealing surface is less eroded and eroded by the medium.
  • The flow direction of the medium is not restricted, and there is no flow disturbance or pressure reduction.
  • The gate valve has a simple shape, short structural length, good manufacturing process, and wide application range.



Advantages of Knife Gate Valves



Applications of Knife Gate Valves

Knife gate valves are suitable for many applications. The following are some common areas of application:

  • Oil industry: used to shut off extremely viscous fluids such as petroleum and crude oil, thus helping to regulate the flow of this material.
  • Water treatment industry: used in water supply, sewage treatment, water supply and drainage systems, etc., to control the cut-off and regulation of water flow.
  • Chemical industry: used to cut off or regulate the medium in chemical pipelines to ensure safety and process control.
  • Power industry: used in water treatment system, cooling system of power station and thermal power plant to control the flow of water or steam.
  • Iron and steel industry: Used in water supply, cooling systems and wastewater treatment systems in the iron and steel smelting process.
  • Mining industry: used for controlling fluid media, such as ore slurry, ore leaching solution, etc.
  • Construction industry: used in building water supply system, fire fighting system and HVAC system.

The above are just some common application areas, the knife gate valve has a very wide range of applications, according to the specific fluid control needs for different industries.



Valve Application



Types of Knife Gate Valves

⁤The types of knife gate valves are as follows: ⁤

⁤When choosing a knife gate valve type, you can consult the valve manufacturer to help you make the most informed choice. ⁤



Factors to Consider When Selecting a Knife Gate Valve

Remember the following five considerations when choosing a knife gate valve:

  • Operating conditions: Under specified parameters, the valve can operate safely because of the fluid’s pressure, temperature, and flow rate.
  • Fluid characteristics: The fluid’s type, viscosity, and solids concentration must all be considered. Choice of materials and valve design are affected by this.
  • End connection: Depending on the requirements of the pipe system, select the appropriate type of end connection, such as a lug, clamp, or flange connection.
  • Sorting out the size of the valve will help prevent problems like cavitation and excessive pressure drop.
  • Operating system: Depending on the automation and control level requirements, one of three operating systems is required: pneumatic, electric, or manual.



Installation and Maintenance of Knife Gate Valves

Knife gate valve longevity and efficiency are mostly determined by installation and routine maintenance. Here are some things to think about:

  • Installation: To guarantee that the valve is installed correctly, tighten the nuts in line with the manufacturer’s recommendations.
  • Periodic Inspection: Regularly check the valve for indications of wear, corrosion, or leaks. and replace any worn-out or broken parts right away.
  • The operating portions of the valve will wear down faster and function more smoothly if they are lubricated.
  • Operational checks: Test valves regularly to ensure they close tightly and open and close smoothly.
  • Frequent Cleaning: To avoid the accumulation of debris or particles that could impair performance, keep pipes and valves clean frequently.

You may increase the lifespan of your knife gate valves and reduce the cost of repairs and downtime by adhering to valve installation and maintenance guidelines.



Knife Gate Valve Price



Common Issues and Troubleshooting Tips for Knife Gate Valves

While knife gate valves are known for their reliability, occasional issues may arise. Here are some common issues and troubleshooting tips:

  • To determine the cause of a leak, start by inspecting the valve’s seat for any signs of damage or debris. In cases where such obstructions are found, cleaning or replacing the seat is recommended as an appropriate solution.
  • If the valve proves hard to operate, or sticks in the open or closed position, check whether the gate and seat are damaged or clogged by debris. Remove dirt and impurities if necessary.
  • If the flow of fluid is causing the clogging problem and this occurs very often, try to analyze what kind of liquid you are dealing with as it may contain solid impurities. In some cases, it is possible that a slurry knife gate valve should be used or regular cleaning would be needed.
  • In case the valve is showing an excessive sign of wear and tear, please look at the fluid nature, conditions of operation, and material of construction. It may be necessary to change to a valve which is more durable with increased resistance to wear.

It is important to consult the manufacturer or a valve expert if you encounter any persistent issues with your knife gate valve. They can provide guidance and recommendations for resolving the problem effectively.



Top Manufacturers and Brands of Knife Gate Valves

When it comes to purchasing a knife gate valve, it is crucial to choose a reputable manufacturer known for producing high-quality valves. Some of the top manufacturers and brands in the industry include:

  • Lixin Valve: Lixin Valve is a professional industrial valve manufacturer that offers a wide range of knife gate valves suitable for various applications. Their valves are known for their durability, reliability, and excellent performance.
  • Weir Minerals: A global leader in the design and manufacture of valves for mining and other industries. ⁤⁤Their knife gate valves are designed to withstand abrasive slurries and are very wear-resistant. ⁤
  • Velan: Well-known in the valve industry for its innovative and high-quality offerings. ⁤⁤Their knife gate valves are designed to withstand tough operating conditions while delivering consistent results. ⁤
  • ⁤DeZURIK: A leading manufacturer of valves for water treatment, pulp and paper production, and other uses. ⁤⁤Their knife gate valves are designed to tolerate severe fluids while yet providing a tight shut-off. ⁤

These are just a few examples of the top manufacturers and brands in the knife gate valve industry. When selecting a manufacturer, consider factors such as product quality, reputation, customer support, and availability of spare parts.



Choosing the Right Knife Gate Valve for Your Needs

⁤Finally, knife gate valves provide a versatile and dependable alternative for controlling fluid flow in a variety of industries. ⁤⁤Their distinctive form, tight sealing characteristics, and capacity to handle difficult fluids make them the favored choice for a variety of applications. ⁤⁤When choosing a knife gate valve, take into account fluid properties, operating conditions, valve size, end connection, and actuation mechanism. ⁤⁤Proper installation, frequent maintenance, and troubleshooting can assist assure peak performance and durability. ⁤⁤Finally, choose a renowned manufacturer, such as Lixin Valve, to ensure you get a high-quality valve that fulfills your unique requirements. ⁤⁤This definitive guide contains all of the information you need to make an informed decision and choose the best knife gate valve for your application. ⁤



Contact Lixin Valve, a professional industrial valve manufacturer, for more information and assistance in selecting the right knife gate valve for your needs!

Triple Offset Butterfly Valve vs. Traditional Butterfly Valve: How To Choose?

Posted on by Lixin

When it comes to flow control in industrial applications, butterfly valves are a popular choice due to their compact design and ease of operation. However, there are different types of butterfly valves available, each with its own advantages and disadvantages. This blog post will focus on the triple offset butterfly valve and compare it to the traditional butterfly valve, helping you make an informed decision for your specific needs.



Wafer Butterfly Valve Manufacturer

Traditional Butterfly Valves: Simple but Limited

Traditional butterfly valves consist of a disc that rotates around a central axis, opening and closing the passage for flow. While they are cost-effective and easy to install, they have some limitations:

Higher torque requirements: Due to the disc rubbing against the seat during operation, traditional butterfly valves require more torque to open and close, especially at higher pressures.

Seat wear: The constant rubbing of the disc against the seat leads to wear and tear, reducing the valve’s lifespan and potentially causing leaks.

Limited pressure rating: Traditional butterfly valves are not ideal for high-pressure applications due to the limitations of their design.



Triple Offset Butterfly Valves: Engineered for Performance

Triple offset butterfly valves address the limitations of traditional designs by incorporating three distinct offsets:

Disc offset: The disc is offset from the center of the valve body, minimizing contact with the seat and reducing friction.

Stem offset: The stem is offset from the disc’s centerline, further reducing friction and improving sealing.

Seat offset: The seat is angled, allowing for a cam-like action that lifts the disc away from the seat as it opens and presses it firmly against the seat when closed.

This triple offset butterfly valve design offers several advantages:

Lower torque requirements: The reduced friction translates to lower torque requirements for operation, making them suitable for automated systems.

Reduced seat wear: Minimal contact between the disc and seat minimizes wear, extending the valve’s lifespan and ensuring reliable sealing.

Higher pressure ratings: The robust design and tight seal allow triple offset butterfly valves to handle higher pressure applications.

Improved flow characteristics: The offset design provides a more streamlined flow path, reducing turbulence and improving efficiency.



Choosing the Right Valve: Factors to Consider

When choosing between a triple offset and a traditional butterfly valve, consider the following factors:

Pressure rating: If your application involves high pressure, a triple offset valve is the better choice.

Torque requirements: If your system has limited torque availability, a triple offset valve will be easier to operate.

Valve lifespan: If long-term reliability and minimal maintenance are crucial, a triple offset valve’s reduced wear offers an advantage.

Cost: Traditional butterfly valves are generally cheaper upfront, but the longer lifespan and lower maintenance costs of triple offset valves can make them more cost-effective in the long run.



Ultimately, the best choice depends on your specific application and priorities. By understanding the differences between triple offset and traditional butterfly valves, you can make an informed decision that ensures optimal performance and reliability for your needs.



For More Detailed Information, Visit: Lixin Valve Group

Triple Eccentric Butterfly Valves: A Revolution in Flow Control

Posted on by Lixin

Triple eccentric butterfly valves (TEBVs) have revolutionized flow control in various industrial applications. Their unique design offers significant advantages over traditional butterfly valves, making them the preferred choice for demanding environments. This blog post will delve into the working principle, advantages, and applications of TEBVs, and highlight the role of triple eccentric butterfly valve manufacturers in delivering this innovative technology.



Triple-Offset Butterfly Valve

Working Principle

Unlike conventional butterfly valves, TEBVs feature three distinct eccentricities:

Shaft eccentricity: The shaft is offset from the center of the disc, allowing for a cam-like action during operation.

Disc eccentricity: The disc is offset from the shaft, creating a non-concentric rotation that minimizes friction and wear.

Seat eccentricity: The seat is conical and offset from the disc and shaft, ensuring a tight seal with minimal torque.



These eccentricities work in synergy to provide several key benefits:

Frictionless movement: The offset design minimizes friction between the disc and seat, resulting in smoother operation and reduced wear.

Tight shut-off: The conical seat and eccentric disc create a wedging action that ensures a bubble-tight seal, even at high pressures.

Reduced torque: The cam-like action requires less torque to operate the valve, leading to lower energy consumption and smaller actuators.

Longer service life: The combination of reduced friction and tight shut-off translates to a significantly longer service life compared to traditional butterfly valves.



Advantages of TEBVs

TEBVs offer a range of advantages over other types of butterfly valves, including:

Superior sealing performance: They provide bubble-tight shut-off, even in high-pressure and high-temperature applications.

Reduced maintenance: Their low-friction design and robust construction minimize wear and tear, leading to reduced maintenance requirements.

Lower operating costs: The lower torque requirement translates to smaller actuators and lower energy consumption.

Increased reliability: Their robust design and superior sealing performance ensure reliable operation in demanding environments.

Wide range of applications: TEBVs are suitable for a variety of applications, including chemical processing, power generation, oil and gas, and water treatment.



Applications of TEBVs

TEBVs find application in diverse industries and processes, including:

Chemical processing: For handling corrosive fluids and high-temperature processes.

Power generation: In steam lines, cooling water systems, and flue gas desulfurization systems.

Oil and gas: For controlling flow in pipelines, refineries, and offshore platforms.

Water treatment: In wastewater treatment plants and desalination facilities.

Pulp and paper: For handling abrasive slurries and corrosive chemicals.



The Role of Triple Eccentric Butterfly Valve Manufacturers

Triple eccentric butterfly valve manufacturers play a crucial role in delivering this advanced technology to various industries. They invest in research and development to improve valve design and performance, ensuring that TEBVs meet the evolving needs of different applications. Additionally, manufacturers provide technical expertise and support to customers, helping them select the right valve for their specific requirements.

In conclusion, TEBVs offer a unique combination of features and benefits that make them ideal for demanding flow control applications. Their superior sealing performance, reduced maintenance requirements, and long service life make them a cost-effective and reliable solution for various industries. As triple eccentric butterfly valve manufacturers continue to innovate and improve this technology, TEBVs are poised to play an increasingly important role in industrial flow control.

Trunnion Ball Valves: The Ultimate Guide

Posted on by Lixin

Trunnion ball valves are a critical component in various industrial applications, renowned for their reliability and robust performance. This guide delves into the intricacies of trunnion ball valves, exploring their design, benefits, applications, and key considerations for choosing the right trunnion ball valve manufacturer.



Trunnion Type Ball Valve Manufacturer



What is a Trunnion Ball Valve?

A trunnion ball valve is a quarter-turn valve featuring a ball with two supporting shafts, known as trunnions, located at the top and bottom. This design differs from standard ball valves, where the ball is only supported by the stem. The trunnions provide additional support and stability, allowing for higher pressure ratings and larger valve sizes.



Benefits of Trunnion Ball Valves

High-Pressure Capability: The trunnion design minimizes the load on the stem and seat, enabling these valves to handle significantly higher pressures than standard ball valves.

Reduced Torque: Due to the additional support, less torque is required to operate the valve, making them suitable for automated systems and larger sizes.

Low Maintenance: Trunnion ball valves are known for their long service life and minimal maintenance requirements.

Bi-Directional Flow: These valves can handle flow in both directions, offering flexibility in piping systems.

Wide Range of Applications: Trunnion ball valves find application in diverse industries, including oil and gas, chemical processing, power generation, and water treatment.



Choosing the Right Trunnion Ball Valve Manufacturer

Selecting a reliable trunnion ball valve manufacturer is crucial for ensuring optimal performance and safety. Here are some key factors to consider:

Experience and Expertise: Look for manufacturers with a proven track record and extensive experience in producing high-quality trunnion ball valves.

Material Selection: The manufacturer should offer valves constructed from materials compatible with your specific application and fluid type.

Certifications and Standards: Ensure the manufacturer adheres to relevant industry standards and holds necessary certifications for quality and safety.

Customization Options: Choose a manufacturer that can provide customized solutions to meet your specific requirements, such as size, pressure rating, and material selection.

Customer Support: Opt for a manufacturer that offers comprehensive customer support, including technical assistance and after-sales service.

By carefully considering these factors, you can select a trunnion ball valve manufacturer that provides reliable, high-performance valves for your specific needs.



Conclusion

Trunnion ball valves offer significant advantages in demanding industrial applications. Understanding their design, benefits, and key selection criteria will help you choose the right valve and manufacturer for optimal performance and safety.

Cost-Saving Strategies with Rubber Lined Gate Valves

Posted on by Lixin

Rubber lined gate valves are a popular choice for industrial applications due to their corrosion resistance, durability, and tight shut-off capabilities. However, their initial cost can be higher than other valve types. This blog post will explore various cost-saving strategies you can implement when choosing and using rubber lined gate valves.



Rubber Lined Flange Type Knife Gate Valve



Choosing the Right Valve for the Application

Valve type: Consider the specific needs of your application. A full-bore design might be necessary for high flow rates, while a reduced-bore option could suffice for lower flow applications, offering cost savings.

Pressure rating: Selecting a valve with a higher pressure rating than required can be unnecessarily expensive. Choose a valve with a pressure rating that matches your system’s requirements.

Material selection: Different rubber linings offer varying levels of resistance to chemicals and temperature. Choosing the optimal lining material for your specific application can prevent premature valve failure and costly replacements.



Optimizing Valve Maintenance

Preventive maintenance: Implementing a regular maintenance schedule can significantly extend the lifespan of your valves, reducing the need for replacements. This includes periodic inspections, lubrication, and cleaning.

Early detection and repair: Addressing minor issues early can prevent them from developing into major problems that require costly repairs or replacements.

In-house expertise: Training your personnel to perform basic maintenance tasks can save on external service costs.



Leveraging Supplier Relationships

Negotiate bulk pricing: If you require multiple valves, negotiating a bulk purchase with your supplier can lead to significant discounts.

Explore alternative brands: Consider comparing prices and specifications from different valve manufacturers to find the most cost-effective option without compromising quality.

Seek long-term partnerships: Building a strong relationship with your supplier can lead to better pricing, priority service, and access to technical expertise.



Implementing Smart System Design

Optimizing valve placement: Carefully consider the placement of valves within your system to minimize the number of valves required and reduce overall costs.

Utilizing automation: Automating valve operation can improve efficiency and reduce wear and tear, leading to longer valve life and lower maintenance costs.



By implementing these cost-saving strategies, you can optimize your use of rubber lined gate valves and achieve significant cost reductions without compromising performance or reliability. Remember, the initial cost of the valve is only one factor to consider. Focusing on long-term performance and implementing smart maintenance practices can lead to substantial savings over the entire life cycle of your valves.

GET A QUOTE
GET IN TOUCH NOW
E-Mail:[email protected] | WhatsApp:+86 18968776369
×
